The O3Elite Mini is Promolife's smallest and simplest ozone generator. It uses one ceramic cold corona cell to convert oxygen from a tank or concentrator into ozone, with concentrations up to 70 µg/ml (gamma). There's no dial: you turn it on and set the output by adjusting the oxygen flow rate on your low-flow regulator. Promolife includes a gamma chart that maps each flow rate to its ozone output.

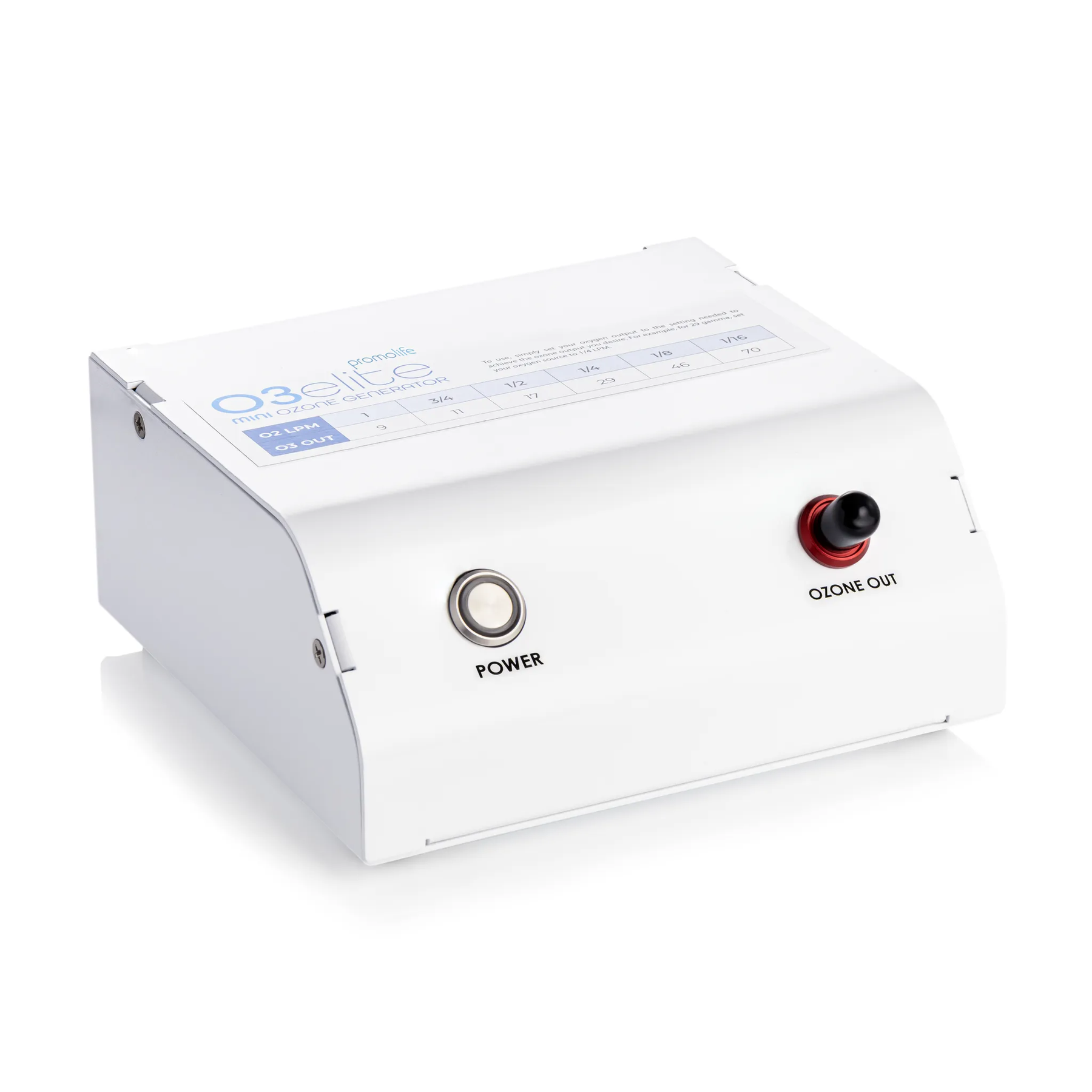

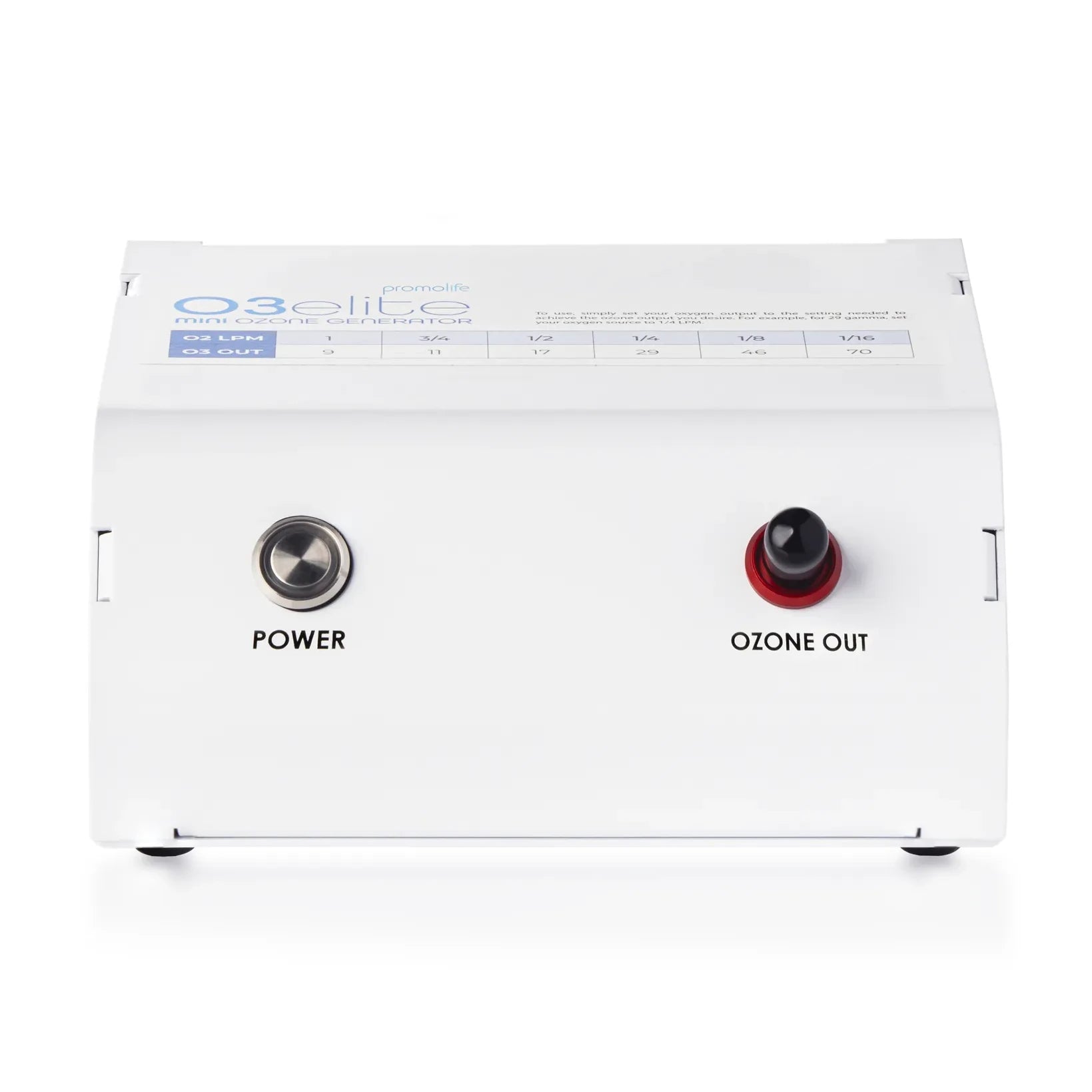

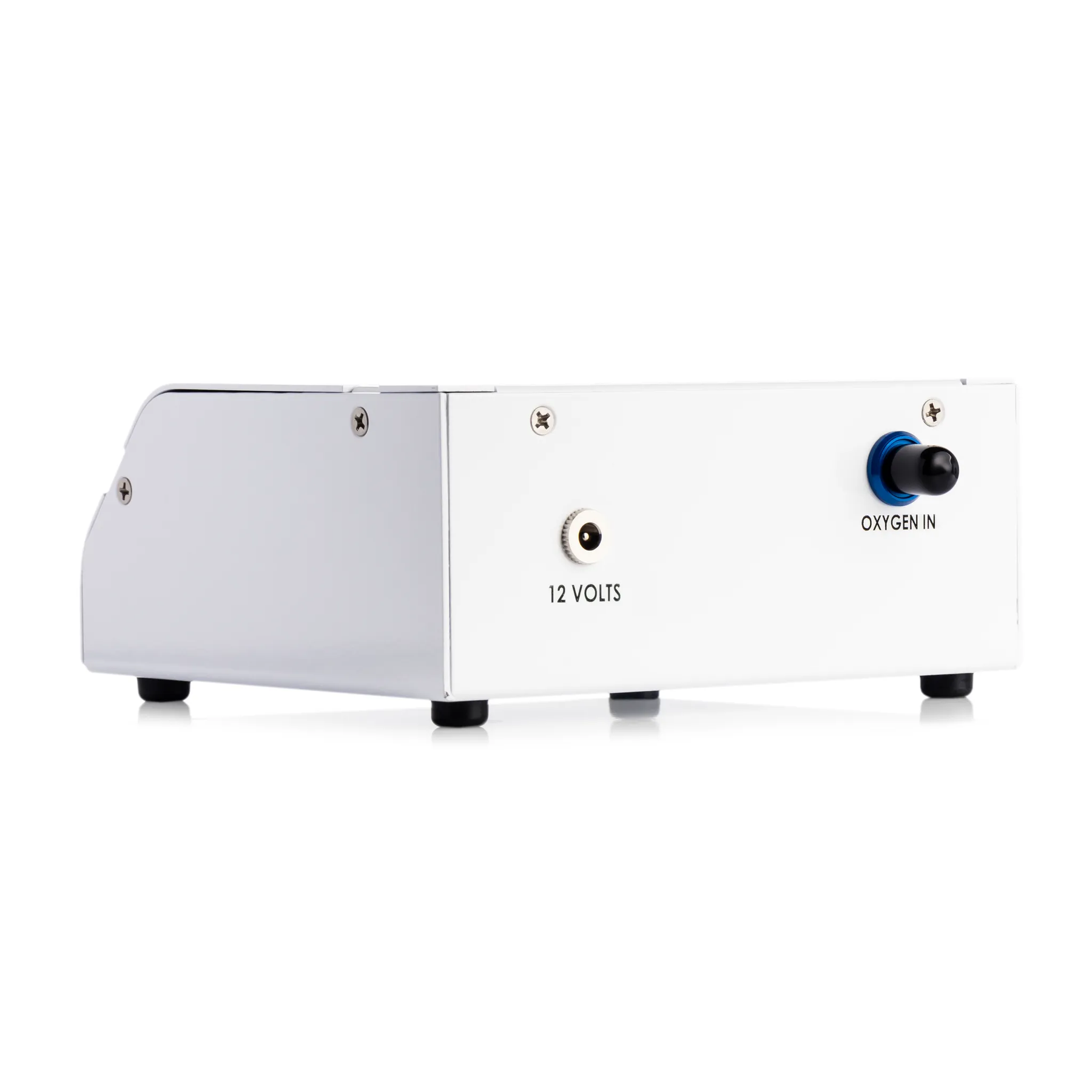

At 6.5 by 6.75 inches and 2.75 inches tall, it packs easily into a small bag, and universal 100-240V input means no step-down transformer when you travel. The oxygen inlet sits on the back and the ozone outlet on the front. Each unit is built and hand-checked by Promolife's technicians in Northwest Arkansas and individually tested for output before shipping.
The ceramic cell runs cool and quiet with no fans. Parts are ozone-resistant, connections are Luer lock, and wall-mount holes are built in.
Key Features:
- Ozone output up to 70 µg/ml, set by oxygen flow rate
- Single-button operation, no dial to adjust
- Ceramic cold corona cell runs cool and quiet
- Universal 100-240V input for worldwide use
- Made in the USA with a lifetime warranty
Specifications:
- Maximum output: 70 µg/ml

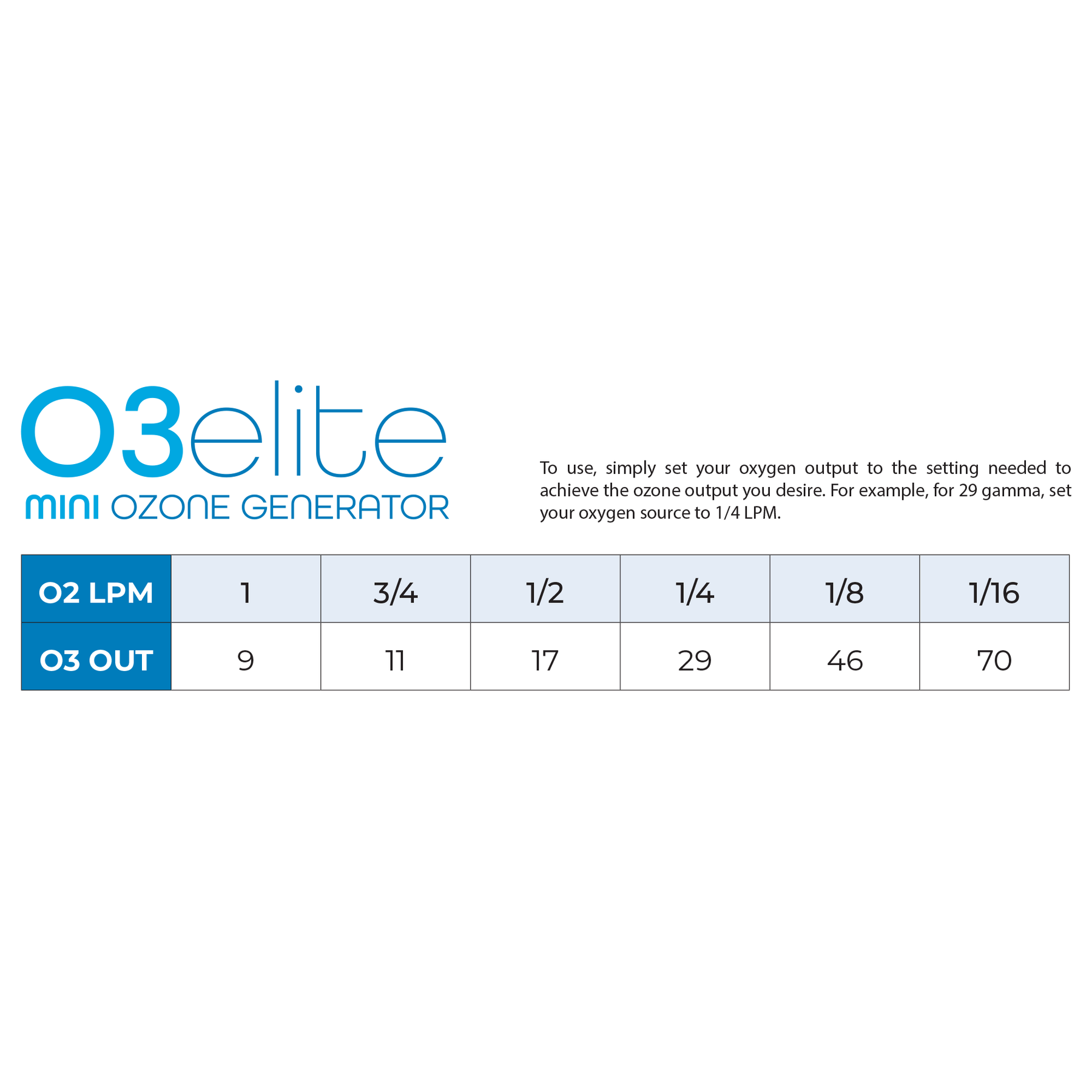

- Output by oxygen flow: 1 LPM 9 µg/ml; 3/4 LPM 11; 1/2 LPM 17; 1/4 LPM 29; 1/8 LPM 46; 1/16 LPM 70
- Cell: ceramic cold corona
- Input: 100-240V, 50/60 Hz, 1.5 A; 12 VDC
- Tube size: 3/16 in inner, 5/16 in outer
- Dimensions: 6.5 x 6.75 x 2.75 in
- Body: painted aluminum
- Oxygen feed required (tank or concentrator, sold separately)
- Warranty: lifetime (manufacturer)
What's Included:
- O3Elite Mini Ozone Generator
- Power adapter
- 5 ft silicone tubing with Luer lock adapter
- 5 ft oxygen tubing with Luer lock adapter
- Two PVDF Luer fit adapters
- Ozone-resistant check valve
- Luer lock caps
- Wall mounts
- Instruction manual and ozone (gamma) chart
Ozone is a reactive gas that should not be inhaled. Use only as directed by the manufacturer and under the guidance of a licensed healthcare provider. This product is not intended to diagnose, treat, cure or prevent any disease.
